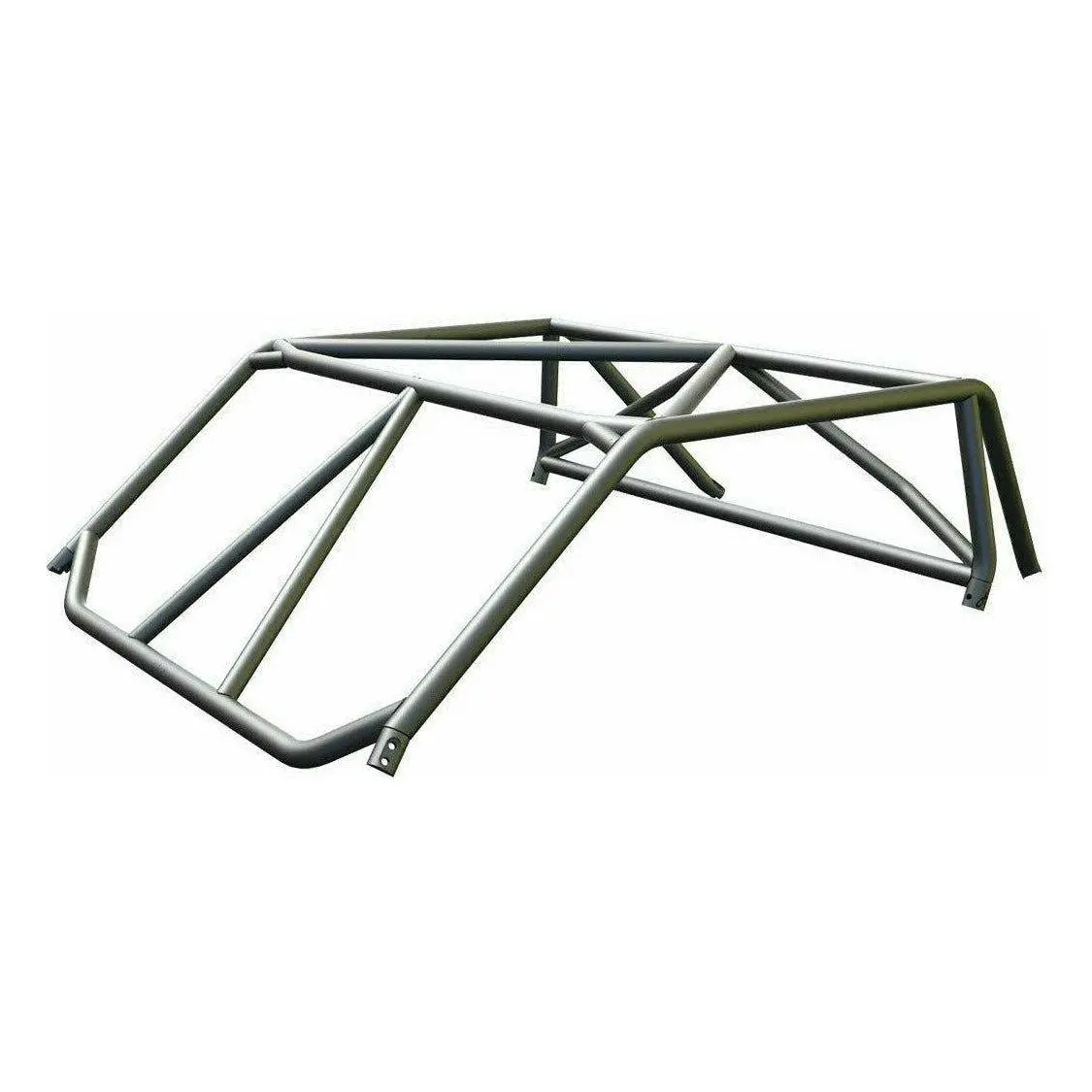

Yamaha YXZ1000R Baja-Spec Raw Assembled Roll Cage with Roof

Description

Laid back design, this fully welded, bolt-on, roll cage for the Yamaha YXZ 1000R. This roll cage is TIG and MIG welded using high quality DOM steel throughout. Main tubes are 1.75″ diameter .095″ thick and cross tubes are 1.50″ diameter and .095″ thick. Our Baja Spec uses all stock mounting locations. Racing inspired design provides exceptional strength for driver and co-rider utilizing the triangles in the design. All tubes are mandrel bent and laser cut for exact fit. Powder coating available. Includes bead rolled aluminum roof with all mounting hardware and tabs welded to chassis.

Features:

• Bolt-on roll cage for the Yamaha YXZ 1000R (2016+)
• Highest grade DOM steel
• Highly triangulated roll cage for added strength
• CNC machined chassis clamps (6)
• 1.75″ x .095″ main tubes
• All tubes are laser cut and mandrel bent
• Exceptional value for high quality UTV roll cage
• MIG and TIG welded

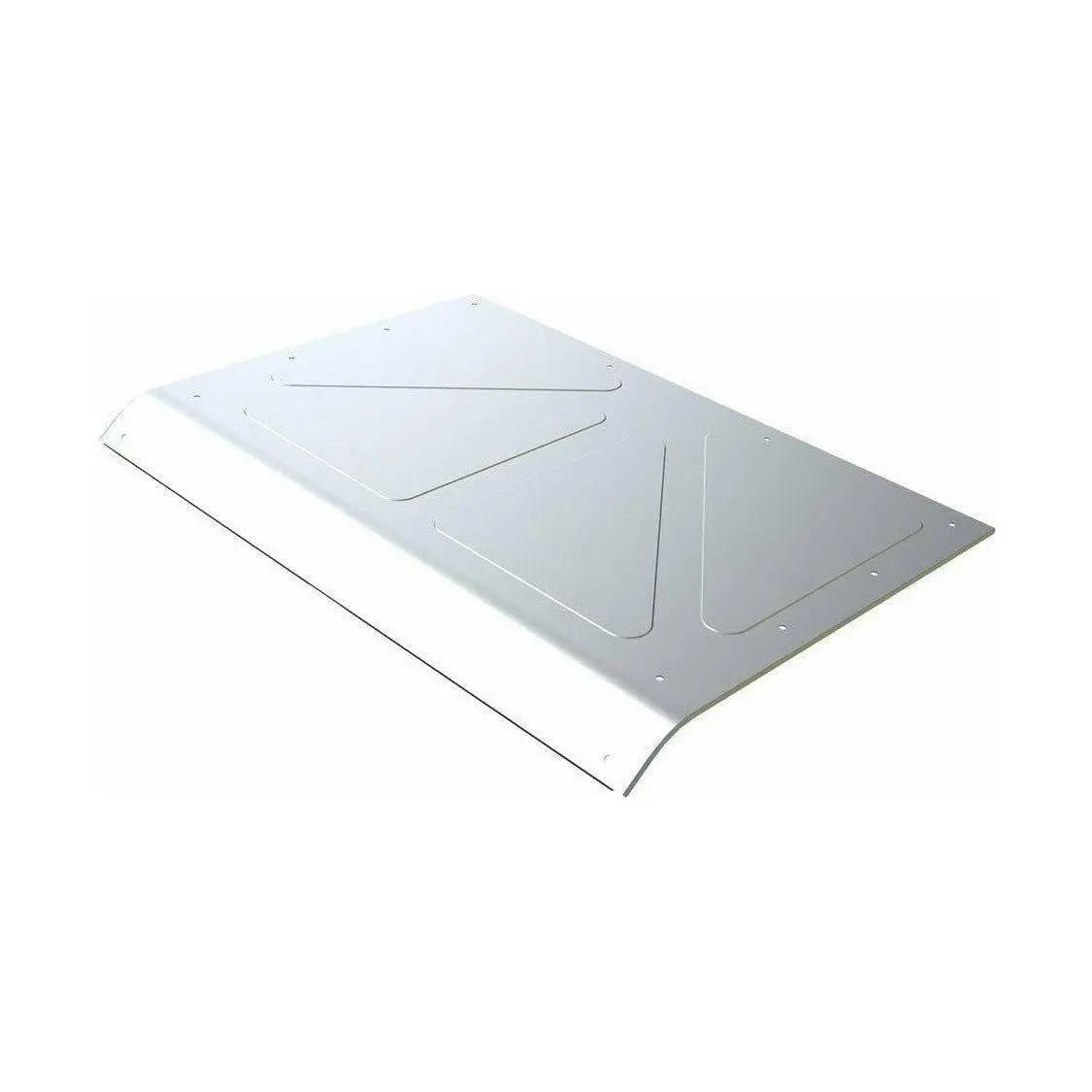

• Bead rolled aluminum roof and Dzus hardware included

NOTE: All Roll Cages have possible lead times due to fabrication. Freight shipping required for all Roll Cages, shipping cost may vary and is subject to change. Commercial address required for freight shipping.

VEHICLE FITMENT

Yamaha YXZ 1000R (2016+)
