Thuren Alien Long Arm Control Arms – Compatible with Dodge Ram 2500 & 3500 (1994–2013)

Description

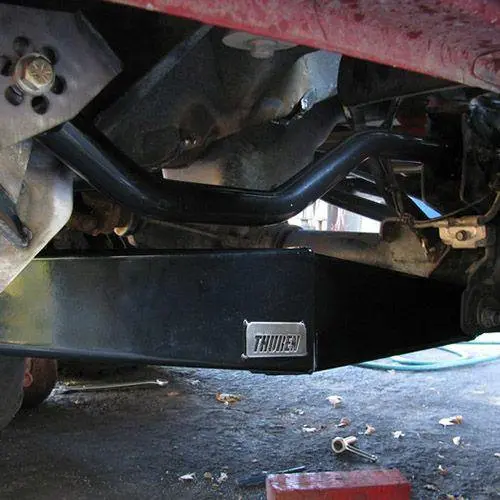

The ultimate option for maximum performance! Our long arms allow the axle to move in a more vertical motion, greatly improving ride quality compared to the factory OEM short-arm design.

• Fit with ZERO lift up to 6″ of lift.
• Optimum cycle path of the suspension, to reduce roll-steer while keeping a bit of anti-dive, and easing driveline vibration.

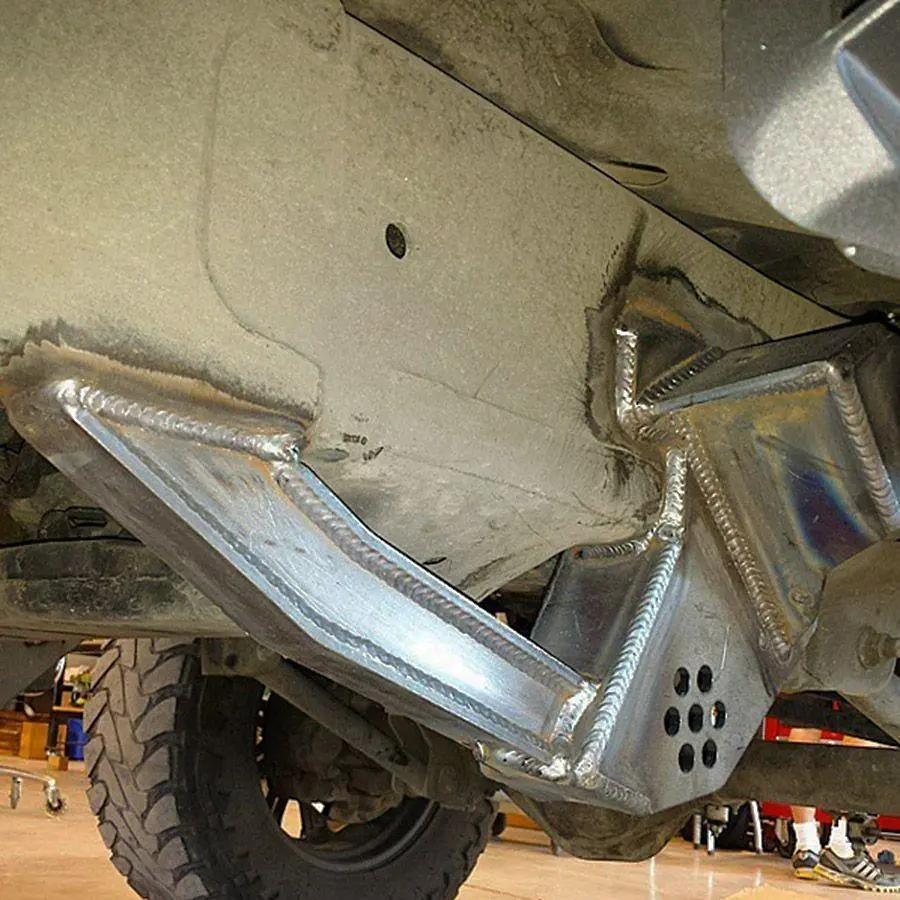

• Must be welded to frame, and OEM control arm mounts cut off/removed.
• Uses our new self-centering 17-4 hardened stainless orbital joint pivots with .PTMEG Poly joints. EASY and cheap to rebuild if/when needed!
• 0.00mm Offset wheels provide full turning radius with up to Toyo 37×13.5 MT tires. +18mm offset wheels will rub the paint a bit with 37×13.5 tire, but be tolerable.
• Arms come powdercoated and assembled, while the brackets are raw steel for welding

The 1994-1998 option will have 12mm bolts (the thread/shank diameter not the bolt head wrench size) for the upper arms, and 14mm bolts for the lower.
The 1999-2002 model option will have 14mm upper bolts, and 16mm lower bolts.
