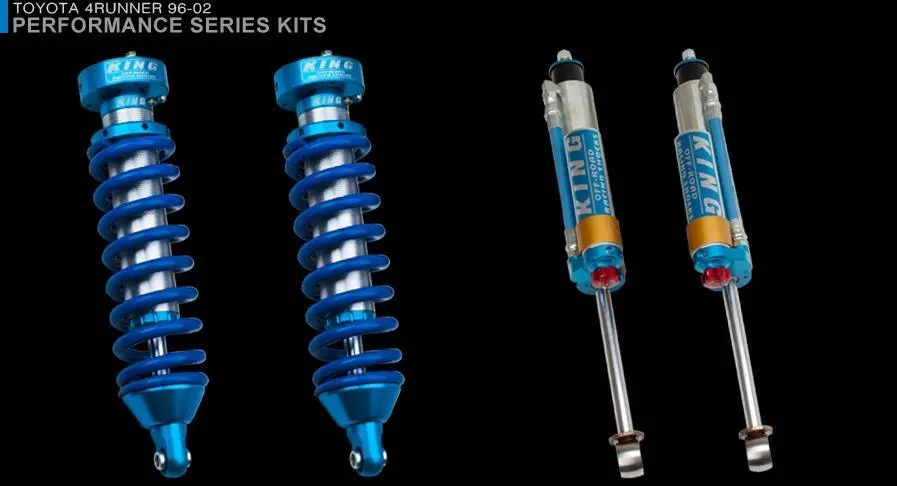

King OEM Series Rear Piggyback Reservoir Shock for 1996–2002 Toyota 4Runner (2.5″ Diameter)

Description

Vehicle Application: 4RUNNER 96-02
Internal Design: MonotubeShock Absorber Type: Gas ChargedDamping Type: NormalAdjustment Type: Without AdjustmentHeight Adjustment Type: Threaded SpacerShock Absorber Outer Diameter: 2.5″Reservoir: Without External Reservoir
Lightweight Hard Anodized 6063 Aluminum Alloy ReservoirsLightweight hard anodized 6063 aluminum alloy reservoirs dissipate heat quickly and will not rust due to gas charging contamination.
Internally threaded Top CapInternally threaded top cap design threads over the shock body to enable maximum piston travel inside the shock body.
FittingsHigh quality fittings are mated to Aeroquip high pressure hoses which resist abrasion and kinking.
Shock Cylinders2.5″ Shock cylinders are precision bored to within +/-.001, then honed after cadmium plating to remove buildup for a tight piston seal and optimum valving function.
Truncated Thread DesignCoilover shocks are machined with own truncated thread design for ultimate strength and trouble free spring preload and height adjustments.
PistonThe heat treated 6061 aluminum alloy piston has our highly developed port configurations that contribute to the unique damping performance and famous King ride quality.
Coil Adjuster NutPinch bolt coil adjuster nut offers superior clamping force to retain your coil preload adjustments without crushing the threads like set screw style collars do.
Shaft
Large 3/4″ or 7/8″ diameter shafts have a minimum tensile strength of 100,000 pounds per square inch. They are hard chromed and micro-polished to a 6 RA finish for extended seal life.
Wear BandsWear bands are made from Rulon composite that offers incredible wear resistance, low deformation under load and high compressive strength. Overlapping end design enhances sealing.
Rod EndHigh strength rod end designed for proper clearance on your application. Steel Teflon lined spherical bearings for smooth articulation and long lfie with no metal to metal contact.
MountsAluminum components and vehicle specific moutns are machined from aircraft quality billet. Front and rear kits all include all necessary vehicle specific mounting crackets and hardware along with detailed installation instructions.
ReservoirInternal reservoir allows easy bolt-on installtion and guards against shock fade during sever use.
