Description
Fits: Raptor 2010-2014 4WD

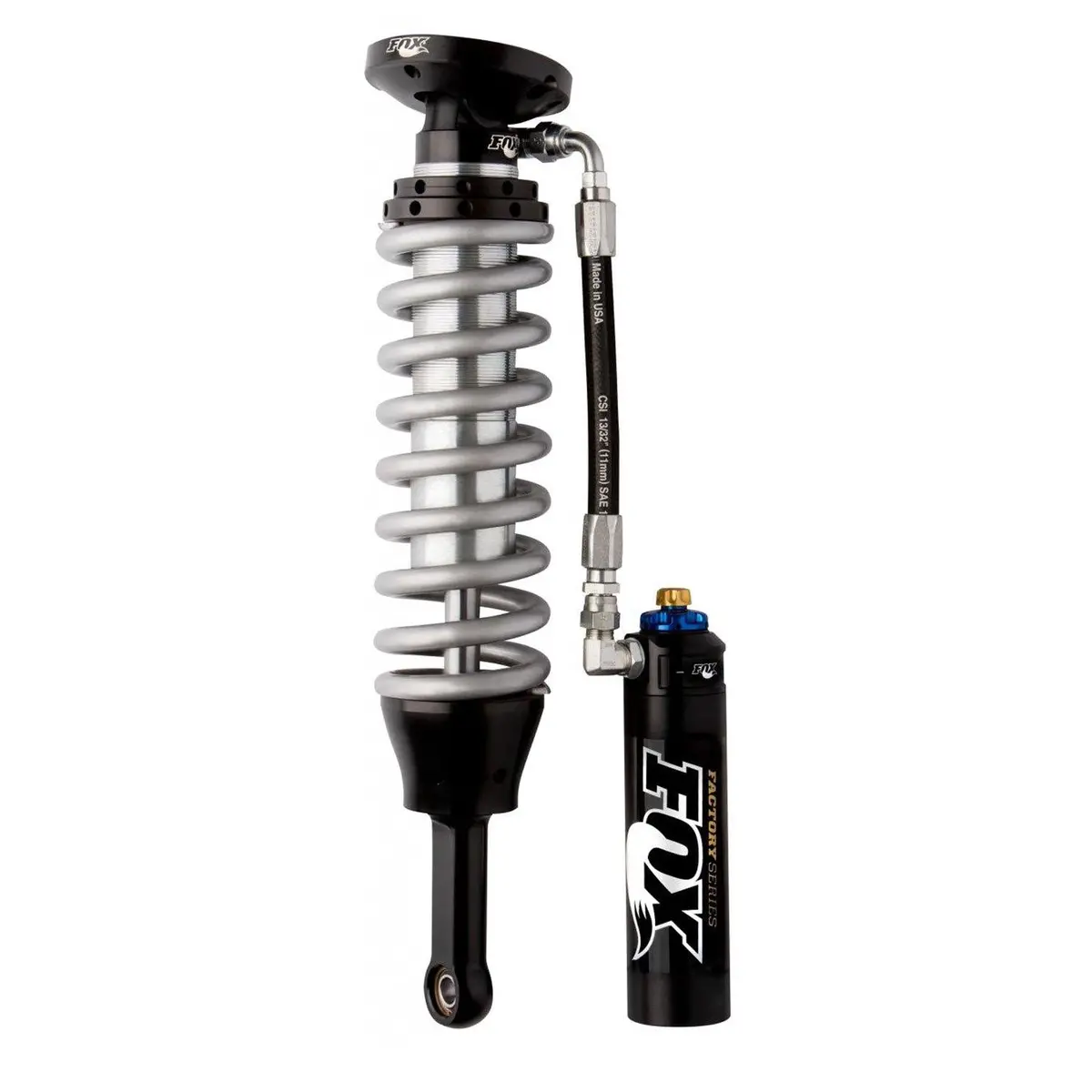

At FOX, racing has always been the cornerstone of our product development. Our 3.0 Factory Series Coil-over Internal Bypass, position-sensitive shocks maximize the entire wheel travel, increases oil capacity, and adds 60% more damping area over the stock FOX SVT shocks. They allow for a plush predictable ride over normal offroad driving conditions and also have the ability to ramp up damping force for extreme use. These heavy-duty, steel-bodied shocks are loaded with anodized billet aluminum components and race-bred internal valving. They are designed to bolt right on to your factory mounts. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Large 2.5 inch remote reservoirs with a large -10 hose increasing the shocks cooling capabilities. Dual Speed Compression (DSC) adjuster gives remarkable versatility and precise tuning. A simple twist of either two adjuster knobs allows twelve separate low-speed and ten high-speed compression levels. The 3.0 Factory Series Coil-over Internal Bypass shocks utilizing all of the same components form our race winning Trophy Truck shocks with Eibach® springs, stainless steel shock shafts, PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton® seals.
Body
- 3.0″ Smooth bore and honed seamless alloy body
Body Plating
- Zinc-plated for long lasting finish
External Reservoir
- 2.5″ Smooth bore and honed seamless alloy reservoir
Components
- Black-anodized, CNC-machined 6061-T6 billet aluminum
Spring
- Application specific, adjustable 3.625 Eibach® racing springs
Shaft
- 7/8″ 17-4 H900 stainless steel hard-chrome plated
Piston
- 6061-T6 hard-anodized, high flow aluminum piston
Valving
- Application specific valving to maximize performance
Seals
- Redundant sealing pack system main seal, wiper seal, scraper seal
- Optional high temperature Viton seals
Oil
- JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bearing
- PTFE-lined, heat-treated, alloy steel spherical
Mounting
- Direct replacement of OEM shock package
