Carli Suspension System for 2005–2016 Ford Super Duty – Pintop Design with 2.5″ Front / 4.5″ Rear Lift

Description

Carli Suspension’s Ford Super Duty Pintop 2.5 system was developed for outstanding on-road and highway performance while offering King shocks with Carli’s custom pistons and valve profile. Off road performance takes a huge step up from the Back Country, while maintaining street ride.

This system fits Ford F-250 and Ford F-350 4×4 trucks from 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016.

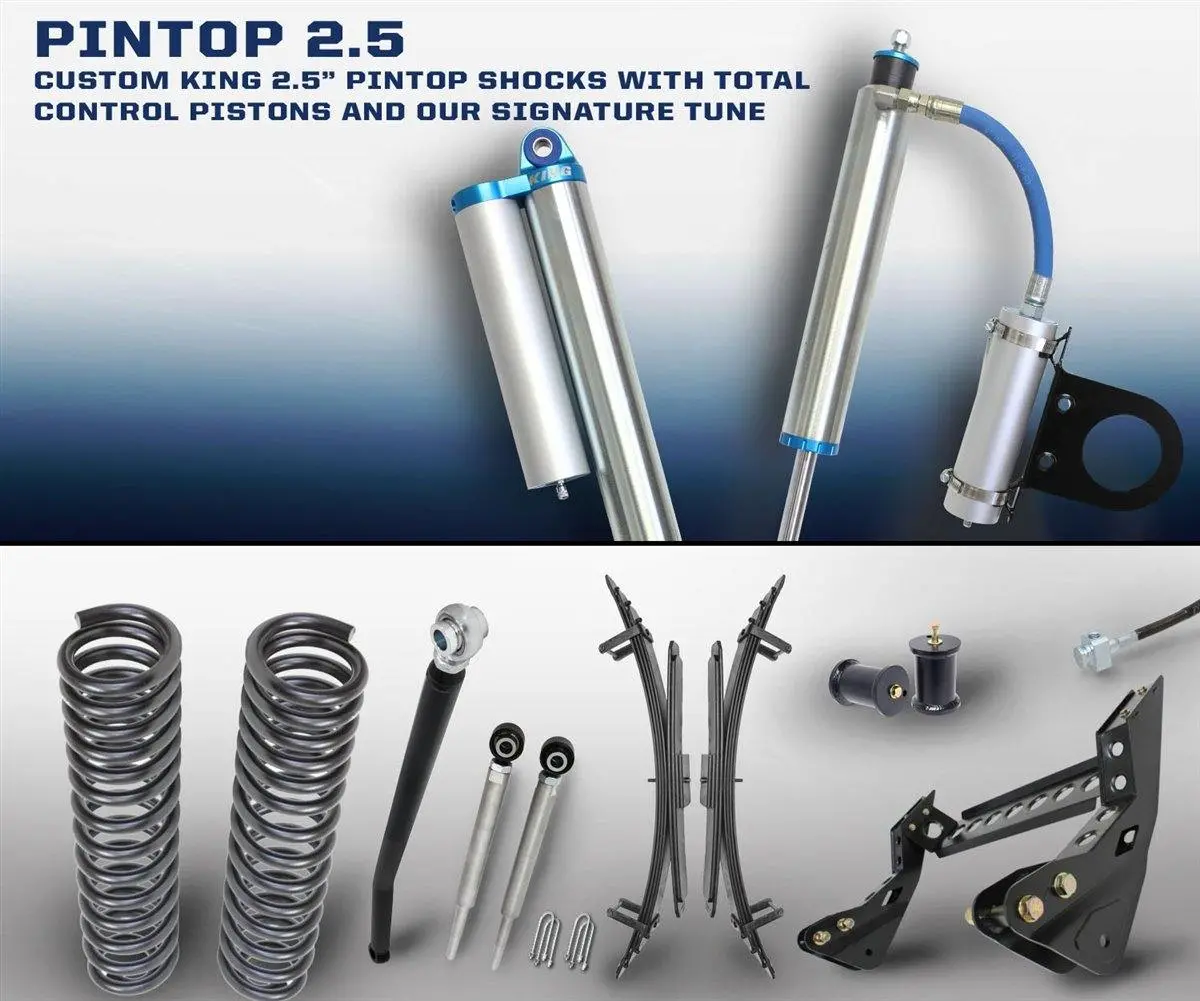

COMPONENTS

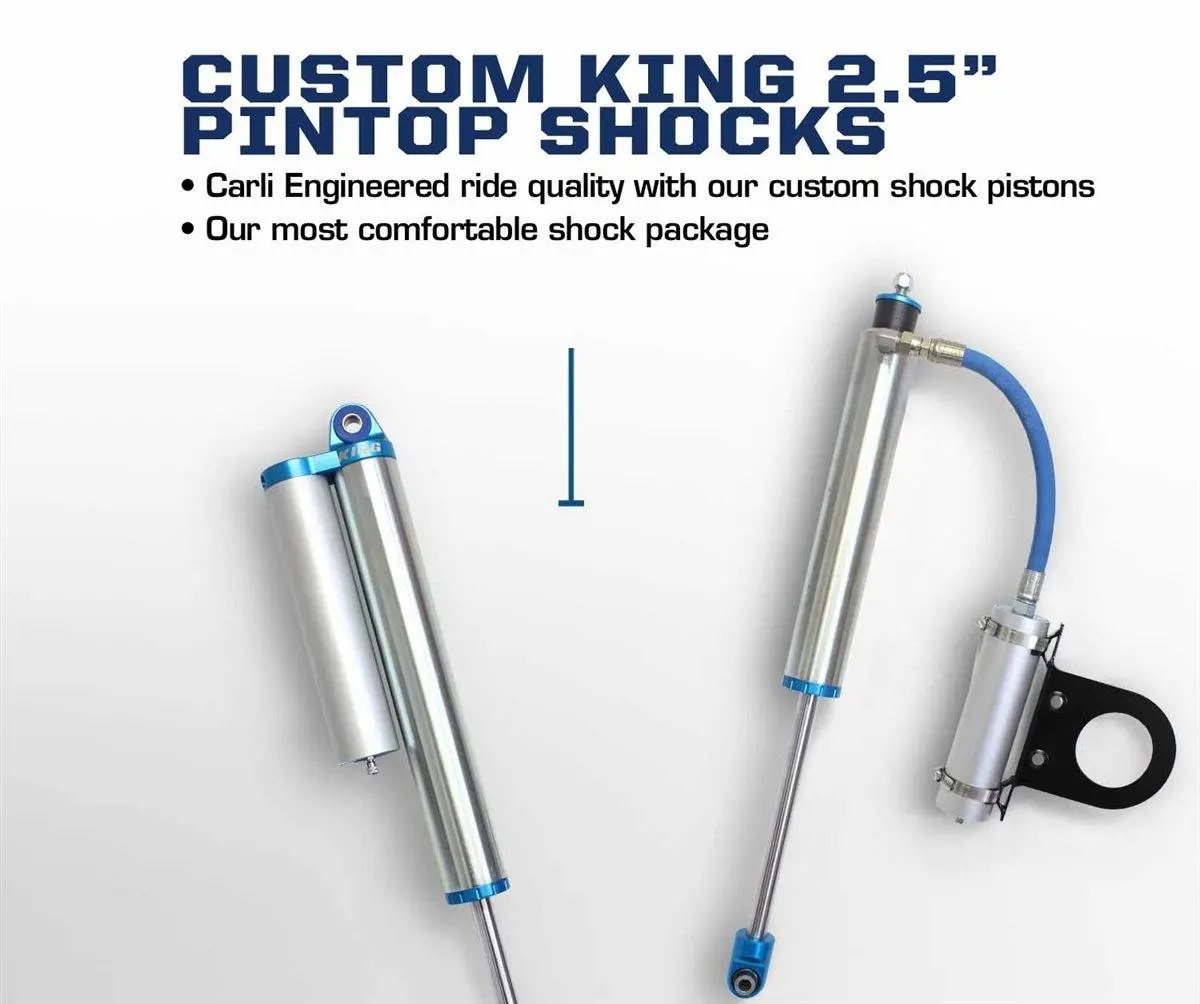

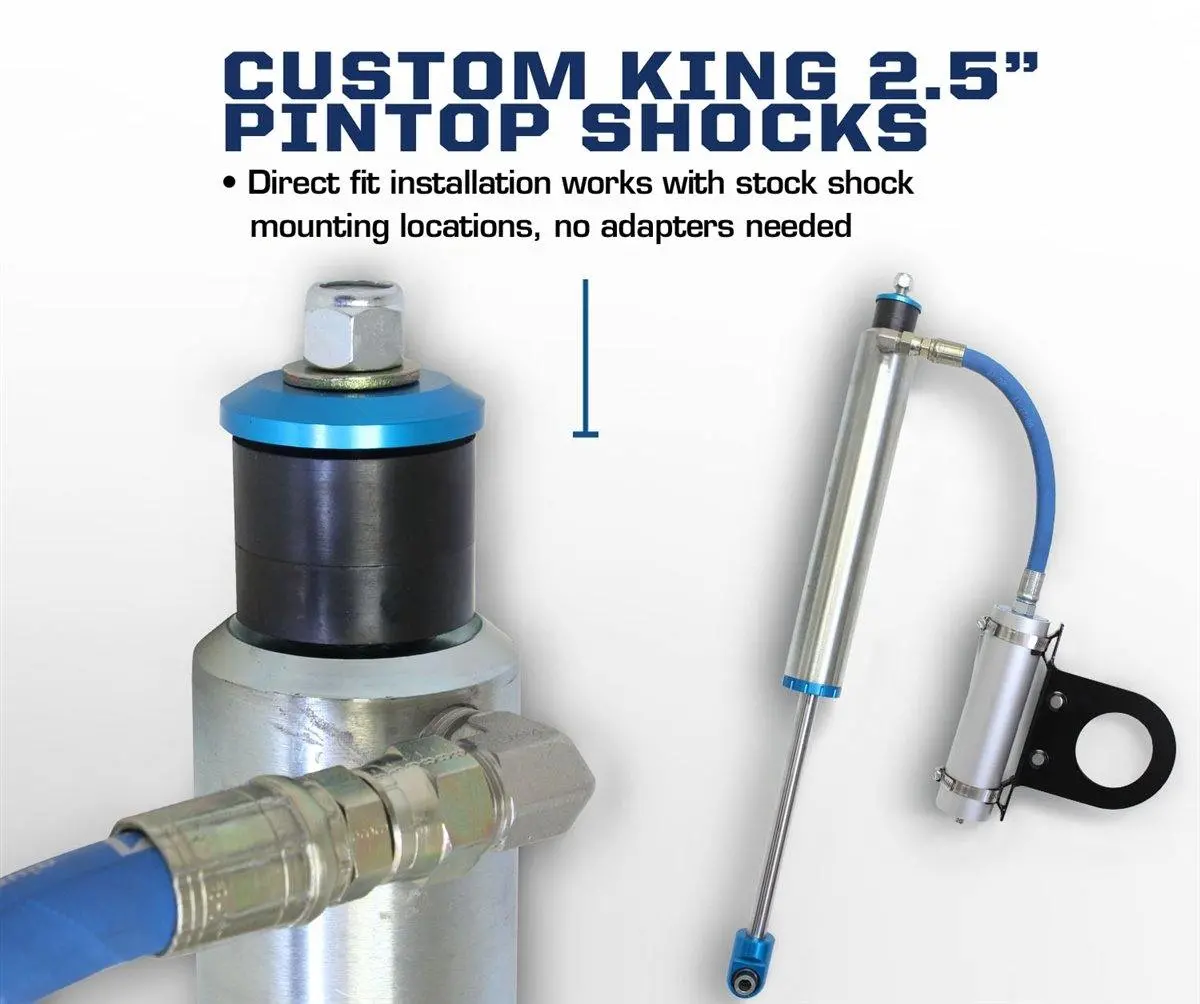

-King Pintop 2.5″ Remote Reservoir Shocks
-King Piggy Back 2.5″ Remote Reservoir Shocks

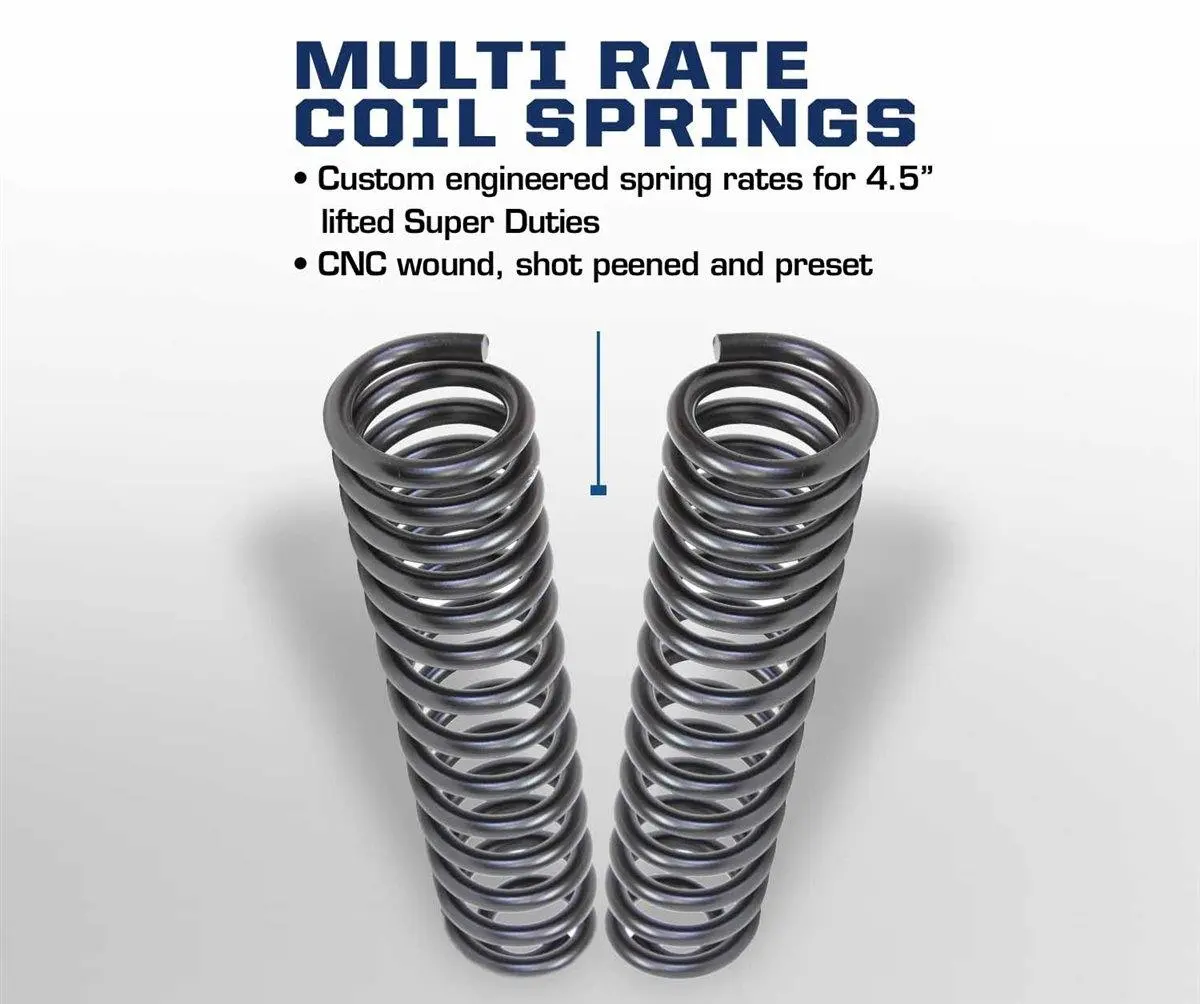

-Carli Multi-Rate Coil Springs

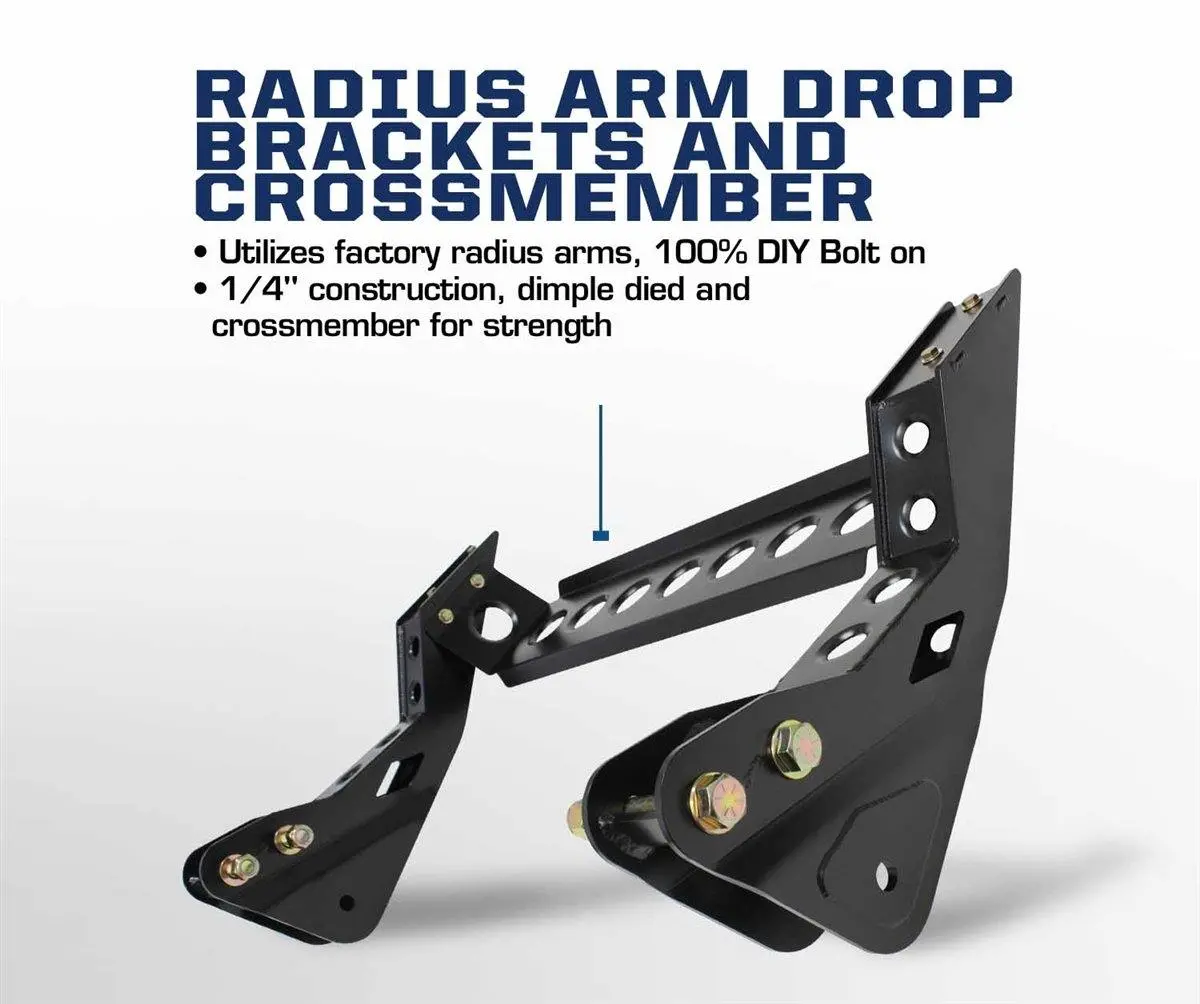

-Radius Arm Drop Bracket Kit with Dimple Die Cross Member

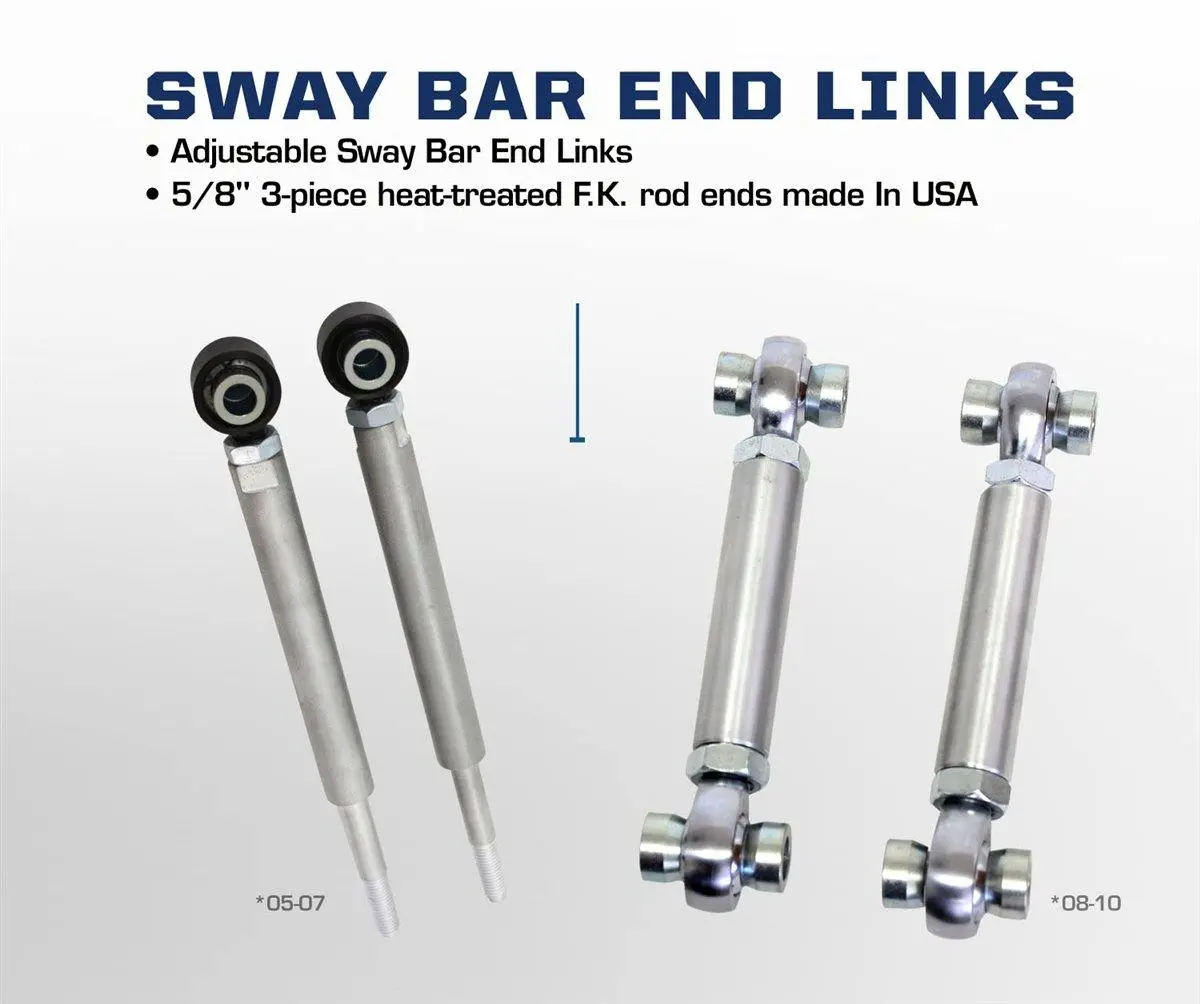

-Sway Bar End links

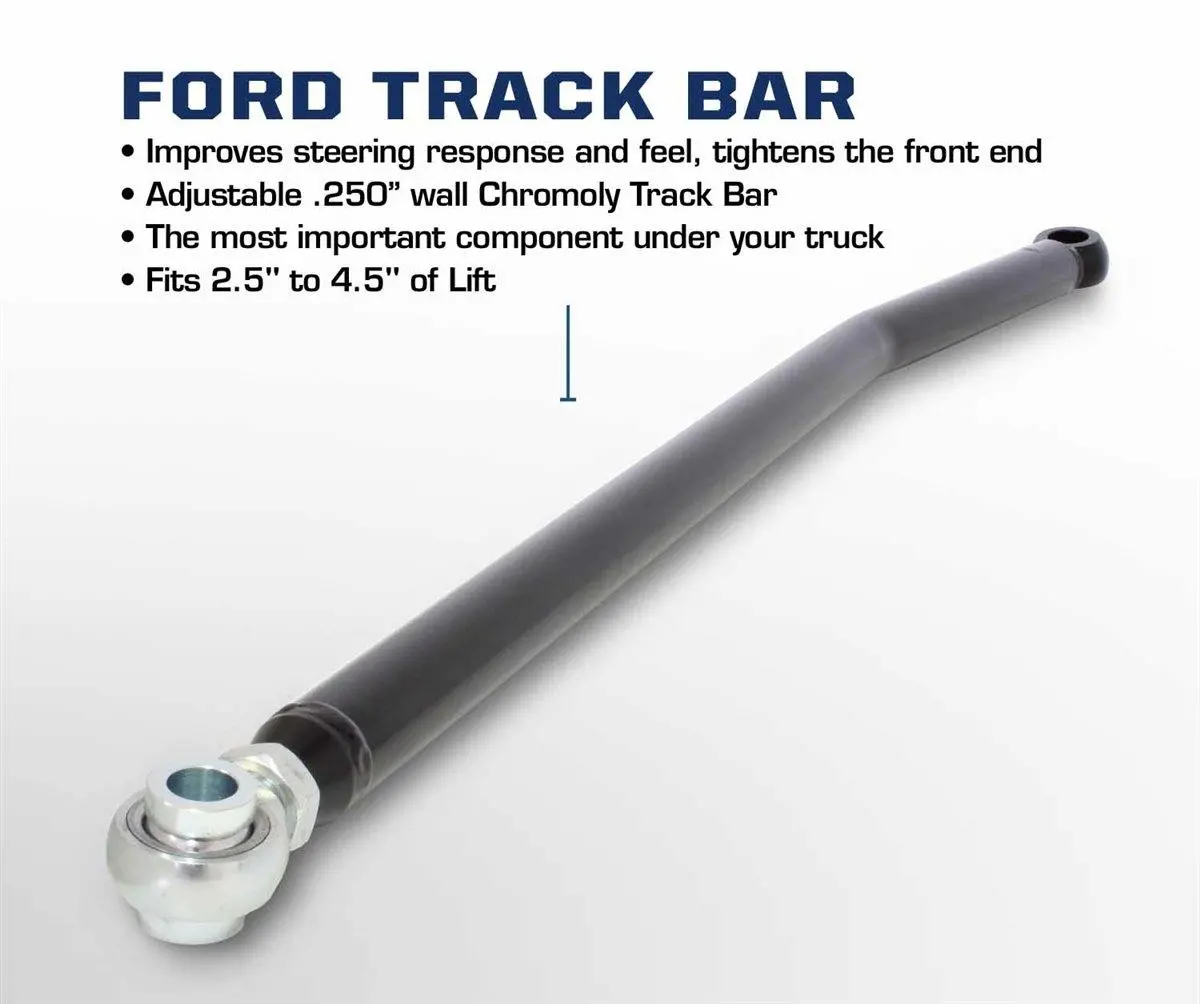

-Adjustable Track Bar

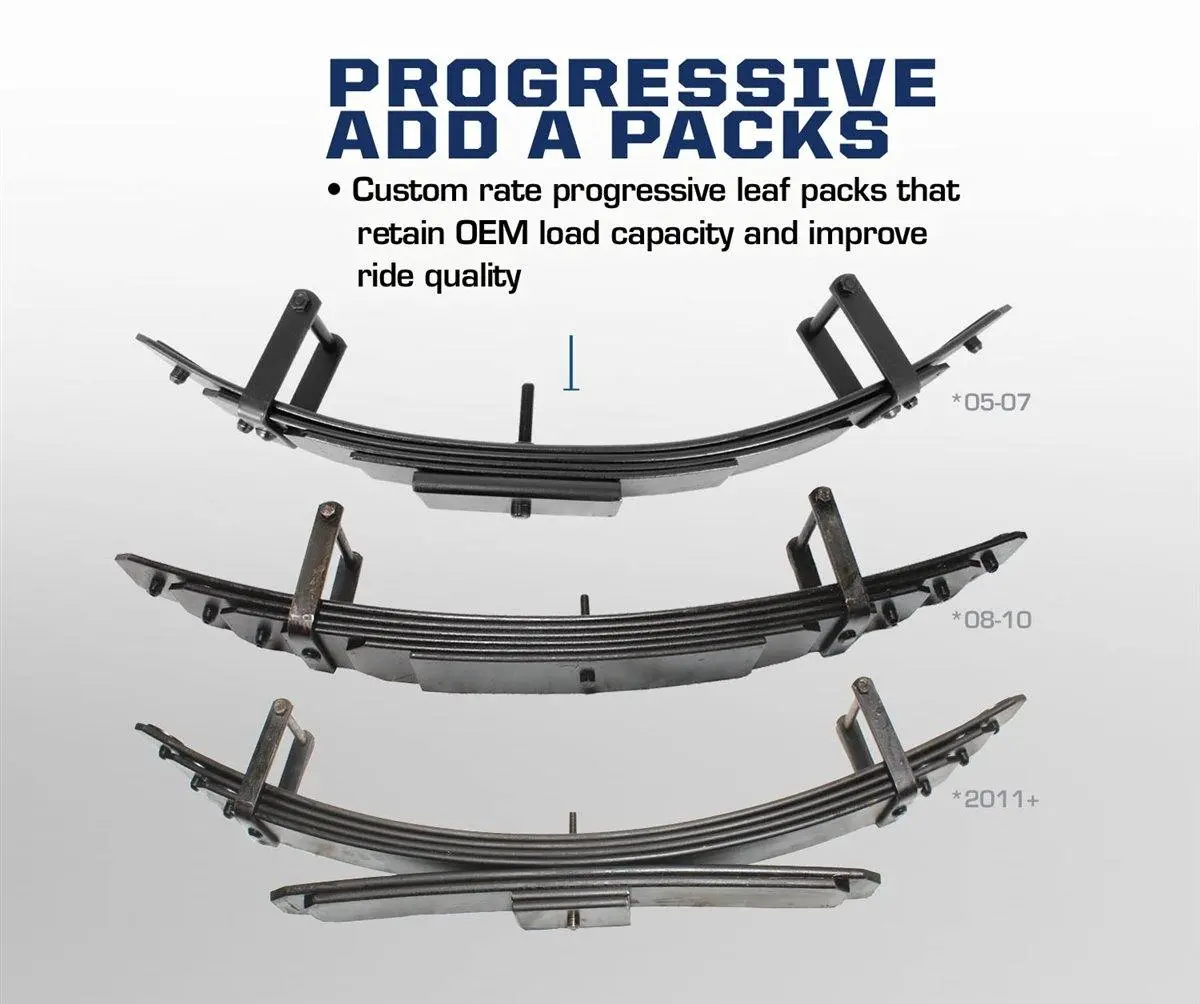

-6 Leaf Progressive Add-A-Pack
-Front Bump Stop Drops
-Extended Braided Brake Lines
FEATURES
-Superior Ride Quality
-Very Controlled Off Road
-Increased Cornering Capability
-Reducing and/or Eliminating Body Roll
-Corrosion-Resistant Stainless Shock Shafts
-Tighter street feel Driving Characteristics
-Increased Suspension Response
-Steering geometry is all within OEM specs
-No additional components are necessary
-Towing/hauling capacity is the same as OEM, no reduction of capability
ALTERED VEHICLE CHARACTERISTICS
-4.5″ of Lift on the Front
-2.5″ of Lift on the Rear
-Vehicle is “Leveled”
-10.0″ of Front Wheel Travel
-12.0″ of Rear Wheel Travel
*F250’s will require the factory F350 (non-dually) rear block to obtain a level stance. These are available with the kit in the options listed above. No blocks will be required to maintain a level stance if Full Progressive Spring Pack Upgrade is purchased or if your truck is an F350 (non-dually).
FITMENT GUIDE
Year Model Part Number
2011-2016 FORD F250 / F350 4×4 CS-F45-PT25-11
2008-2010 FORD F250 / F350 4×4 CS-F45-PT25-08
2005-2007 FORD F250 / F350 4×4 CS-F45-PT25-05
