Carli Suspension 2.5″ Coilover System for 2005–2016 Ford Super Duty – 4.5″ Lift Kit

Description

Carli’s Ford Suspension system brings dramatic improvements to the every day street ride, and plenty of dampening for the off road enthusiast. At the heart of our Super Duty Coil Over Suspension System lies a King shock package which delivers impeccable performance and reliability. This system gives 4.5″ of lift with 10 inches of wheel travel in the front and 12 inches of wheel travel in the rear. There is a full spring pack option as well as a front bypass shock option. The bypass mount is already built into the coil over mount, so the bypass can be added at any time.

This system fits Ford F-250 and Ford F-350 4×4 trucks from 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016.
FEATURES
-Superior Ride Quality
-Very Controlled Off Road
-Increased Cornering Capability
-Reducing and/or Eliminating Body Roll
-Corrosion-Resistant Stainless Shock Shafts
-Tighter street feel Driving Characteristics
-Increased Suspension Response
-Steering geometry is all within OEM specs, no additional components are necessary
-Towing/hauling capacity is the same as OEM, no reduction of capability
WHEEL TRAVEL
-10 Inches of Front Wheel Travel
-12 Inches of Rear Wheel Travel
ALTERED VEHICLE CHARACTERISTICS
-4.5 Inches of Lift on the Front
-2.5 Inches of Lift on the Rear
-Vehicle is “Leveled” from Stock Setup

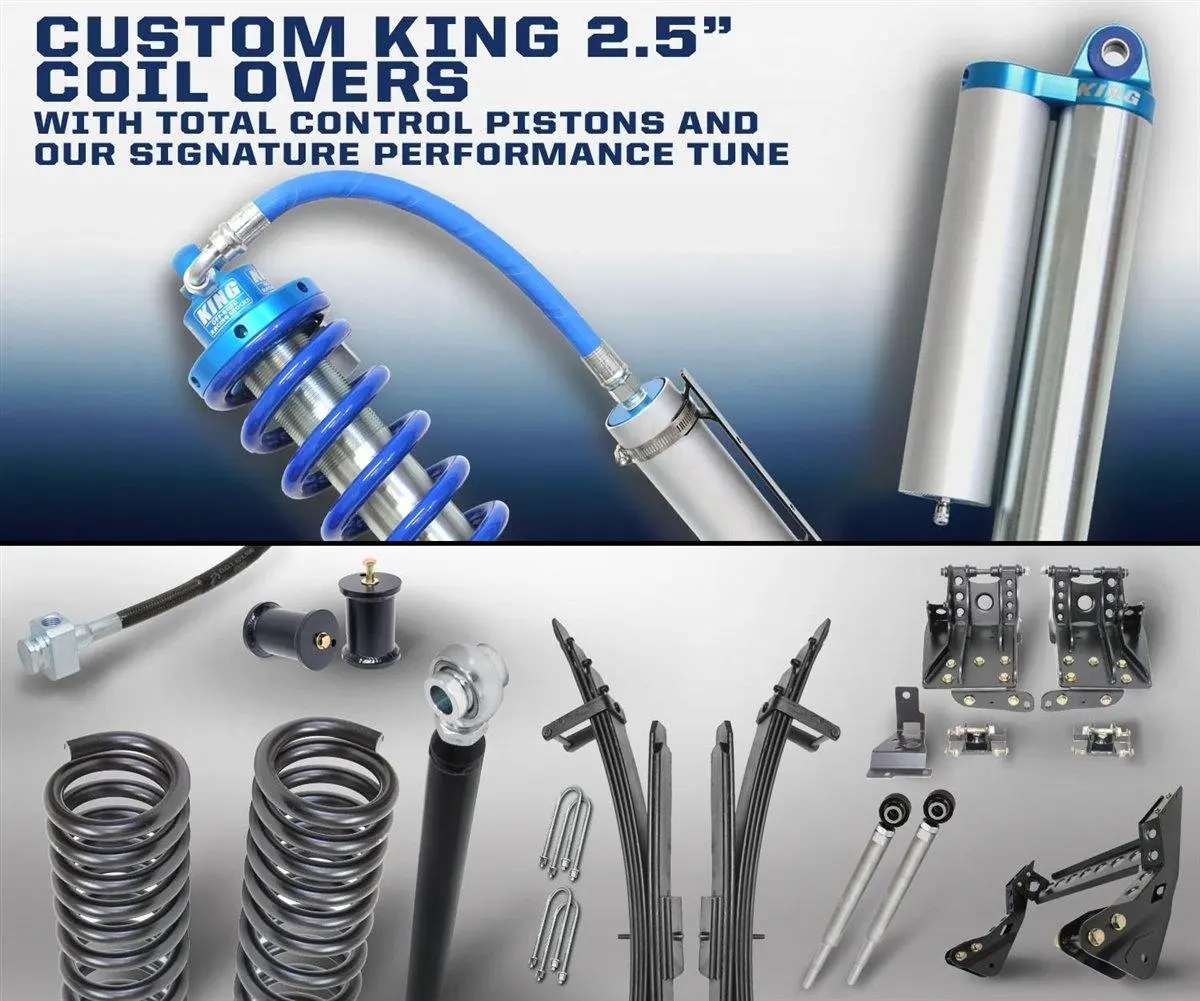

COMPONENTS

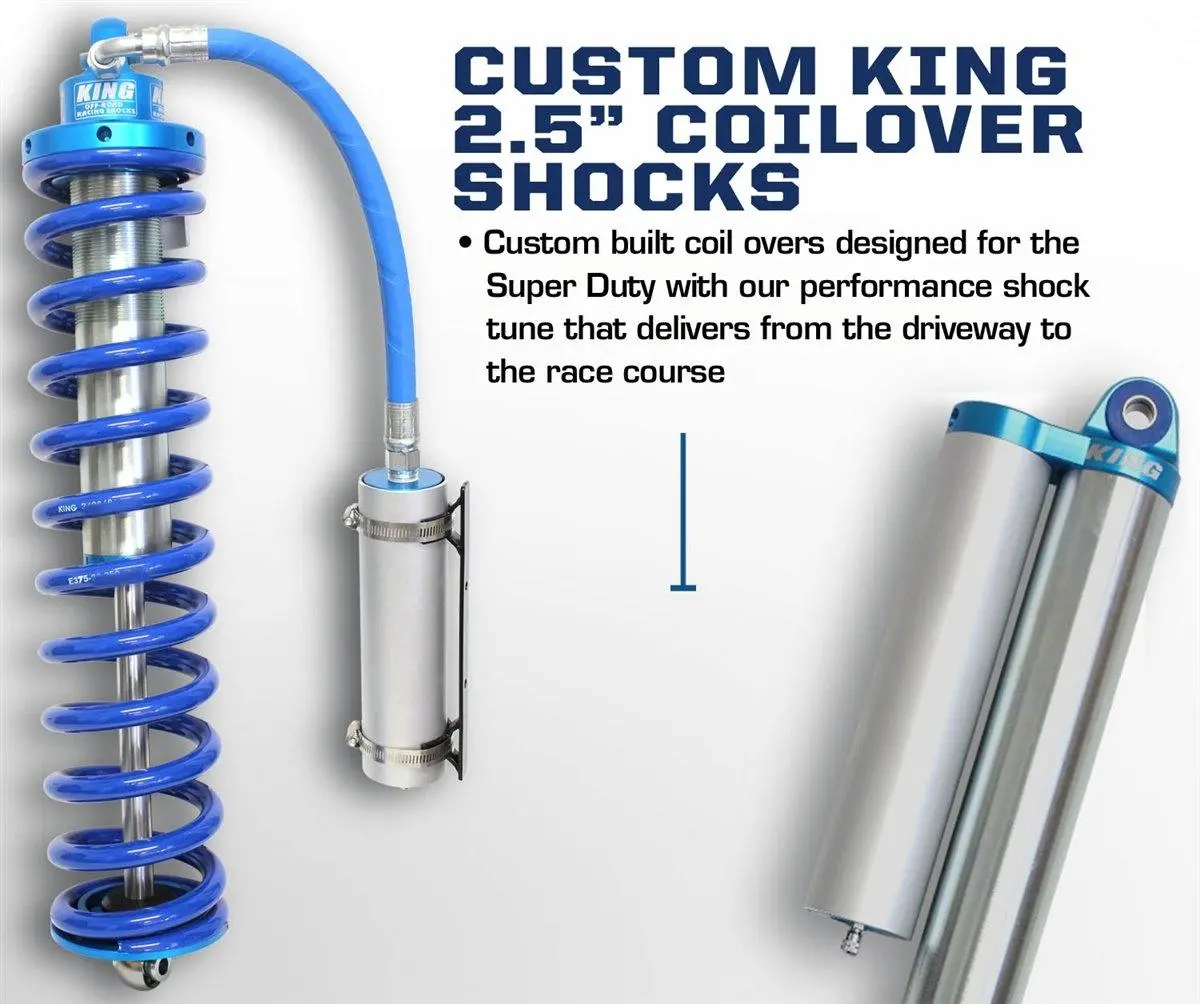

-KING 2.5″x10″ Custom Front Coil Over Shocks
-KING 2.5″x12″ Custom Rear Shocks
-Coil Over Mounting Kit
-Radius Arm Drop Bracket Kit with Dimple Die Cross Member
-Sway Bar End Links
-Adjustable Track Bar
-6 Leaf Progressive Add-A-Pack
-Front Bump Stop Drops
-Extended Braided Brake lines
*F250’s will require the factory F350 (non-dually) rear block to obtain a level stance. These are available with the kit in the options listed above. No blocks will be required to maintain a level stance if Full Progressive Spring Pack Upgrade is purchased of if your truck is an F350 (non-dually).
FITMENT GUIDE
Year Model Part Number
2011-2016 FORD F250 / F350 4×4 CS-F45-CO25-11
2008-2010 FORD F250 / F350 4×4 CS-F45-CO25-08
2005-2007 FORD F250 / F350 4×4 CS-F45-CO25-05
