Description

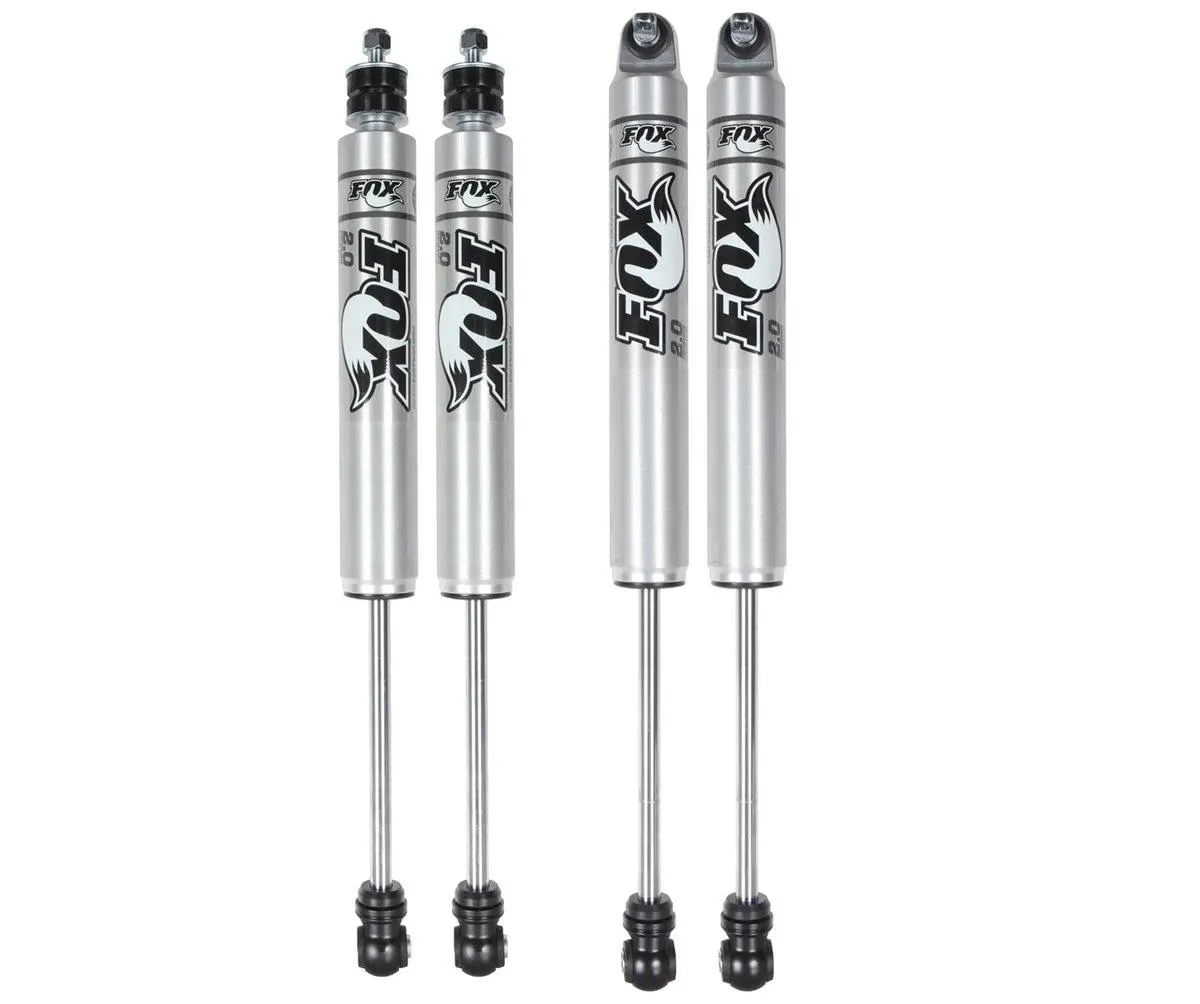

The Commuter 2.0 system is designed for people seeking the best on-road ride quality. Utilizing Fox 2.0” internal reservoir shocks, Carli developed a shock tune that delivers all around comfort and ride quality.
The Fox 2.0s are fully rebuildable, built with hour-glass bushings and boast extruded aluminum construction with a clear anodizing for corrosion resistance. Fox builds these shocks with their legendary red shock oil that flows well down to -55* F.
DESCRIPTION
The front linear rate Carli springs will lift your Jeep JKU 2.5” while the rear is lifted 3.0” utilizing progressive coil springs.

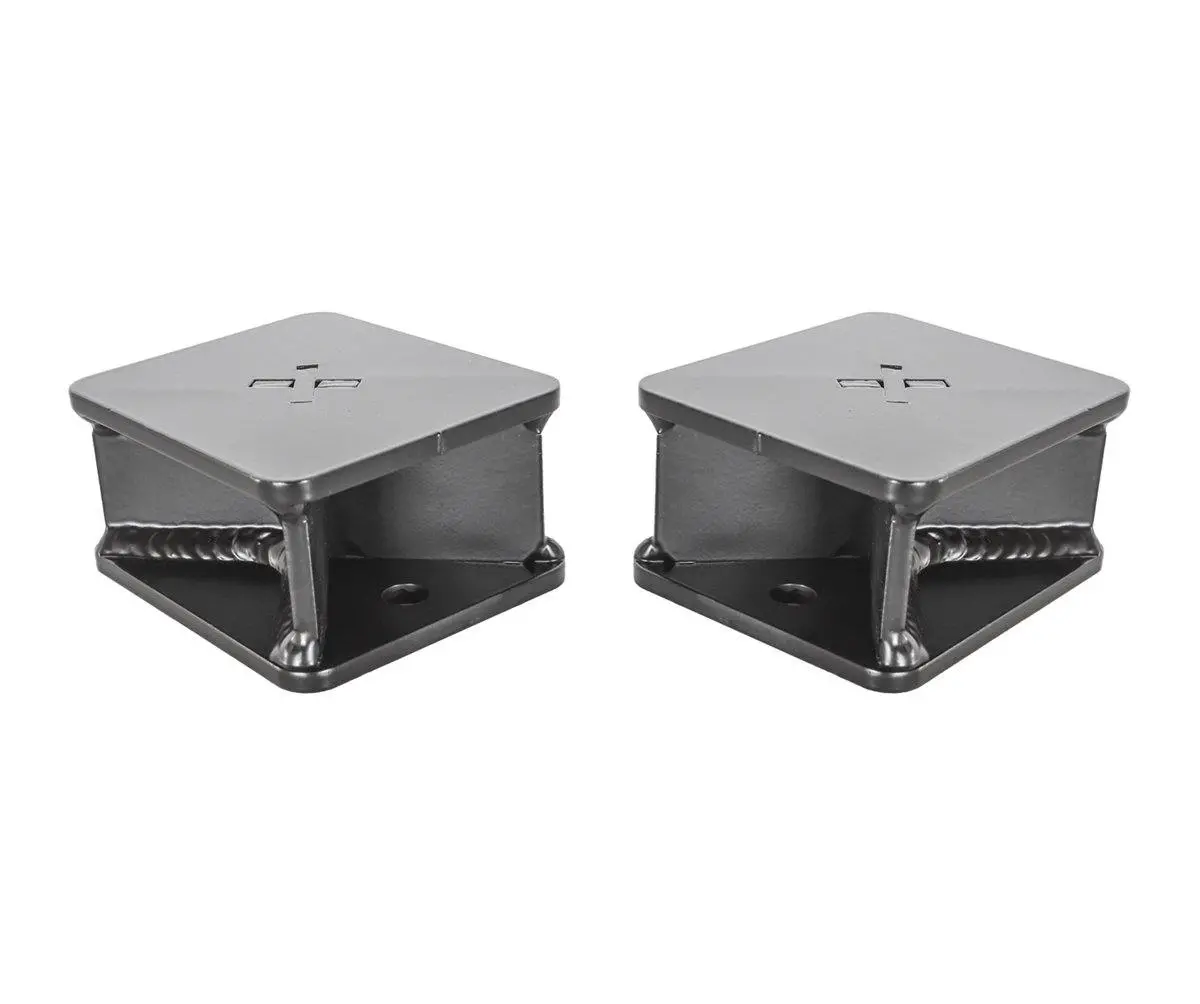

When lifting the front end of a straight axle vehicle, the front axle is pulled off-center unless the proper linkages are addressed. This system includes an Adjustable Track Bar that’s designed to correct the driver’s side axle shift. Extended sway bar end links with spherical bearings accommodate the extended travel and maintain the factory Rubicon Sway Bar Disconnect. Extended stainless brake lines ensure the bottom of the new travel stroke can be reached. A short billet bump riser is included to match the front shock travel.
The rear is lifted 3” with a multi-rate coil spring ensuring a supple ride and reasonable carry capacity. A rear Track Bar Riser and adjustable track bar correct the axle position and minimize yaw (side to side movement of the body as the axle travels). Extended Sway Bar Links are included to accommodate the extended travel stroke as are Stainless Brake Lines and Brake Line Routing Bracket.
INCLUDES

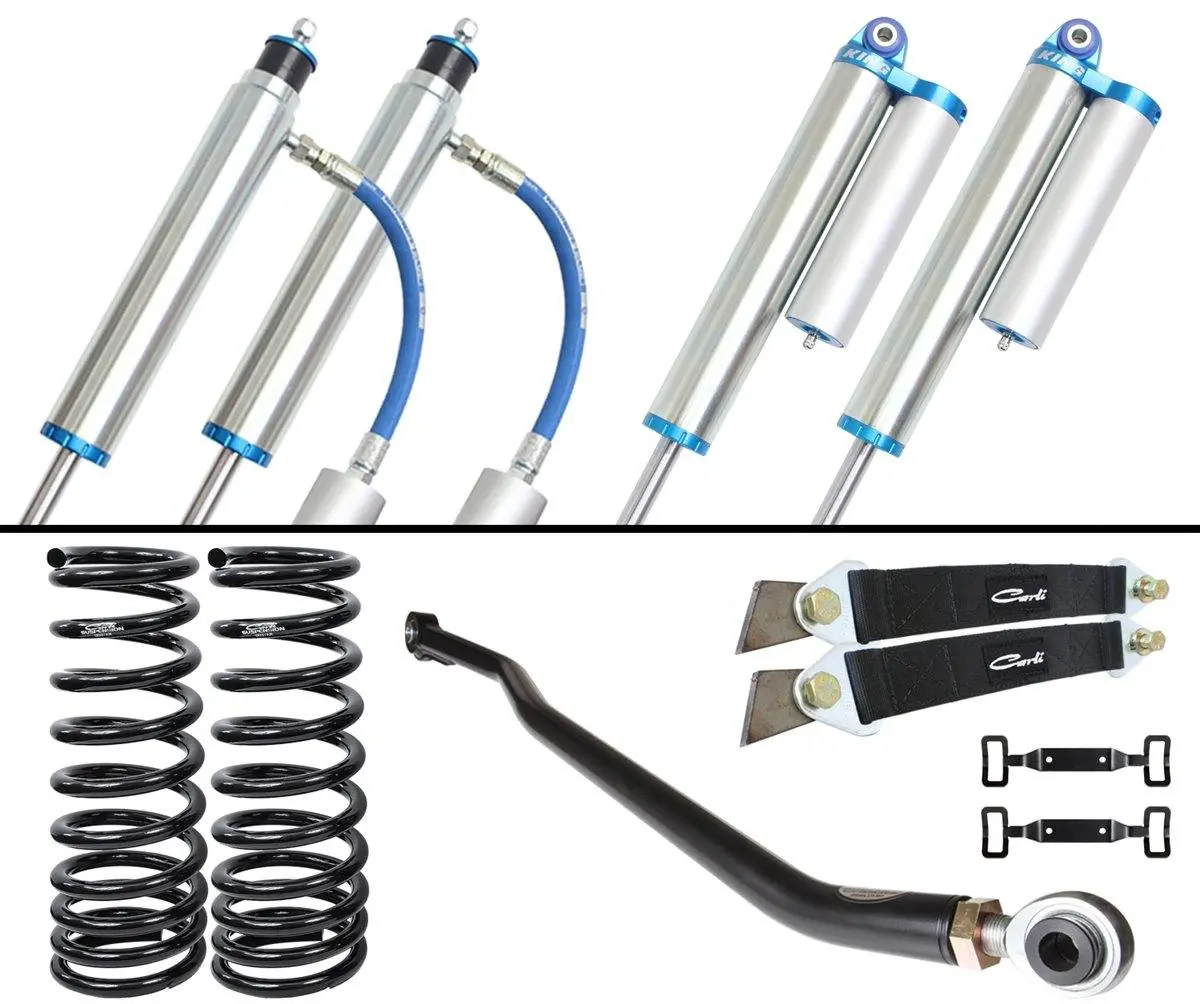

2.5″ Lift – Linear Rate Coils CS-JK25LRC-F-073.0″ Lift – Multi Rate Coils CS-JK25MRC-R-07Carli Commuter Shock Package – Fox 2.0 IFP CS-JKU-C20SPKG-25-07Front Adjustable Track Bar CS-JATB-07-FRear Adjustable Track Bar CS-JATB-07-RRear Adjustable Track Bar Riser CS-JATB-07-R-RISERFront Sway Bar End Links CS-JEL-07-FRear Sway Bar End Links CS-JEL-07-RExtended Brake Lines, Guides, and E-Brake Drop CS-JBBLKIT-07Front Bump Riser, Short CS-JBSF-07-SHORTRear Bump Riser CS-JBSR-07
