Description

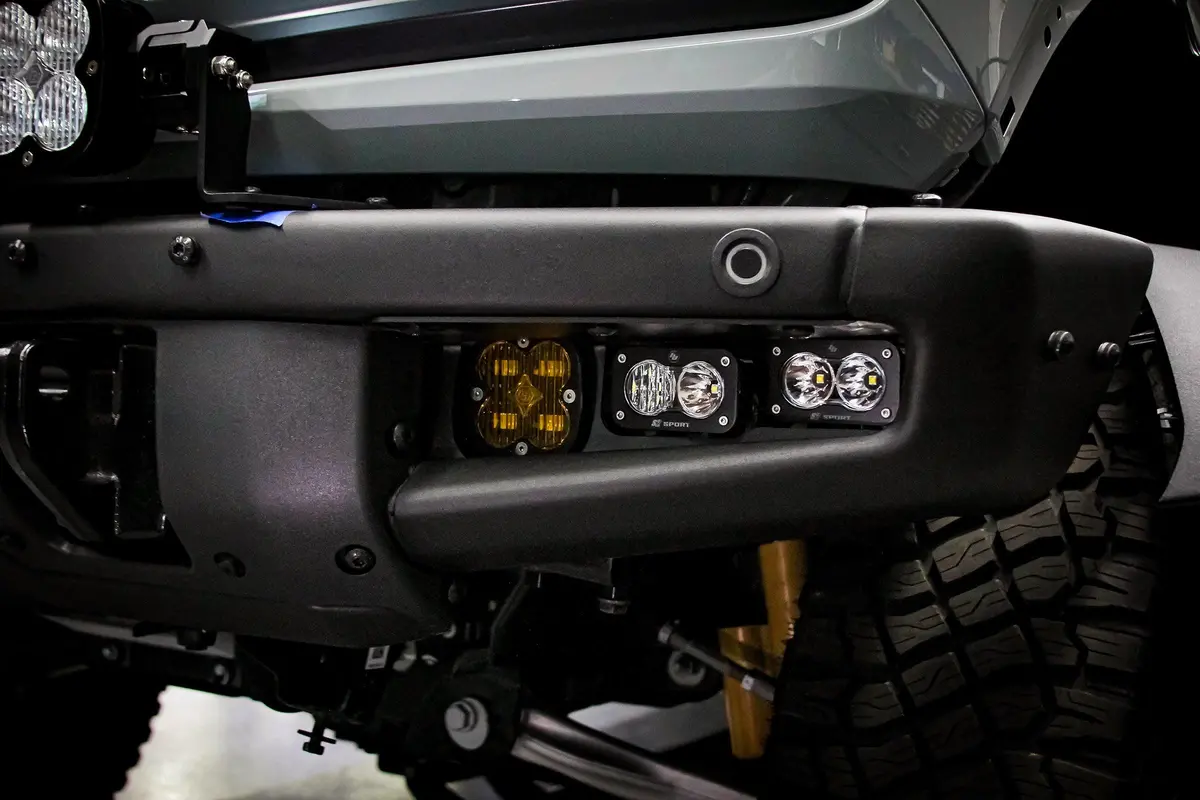

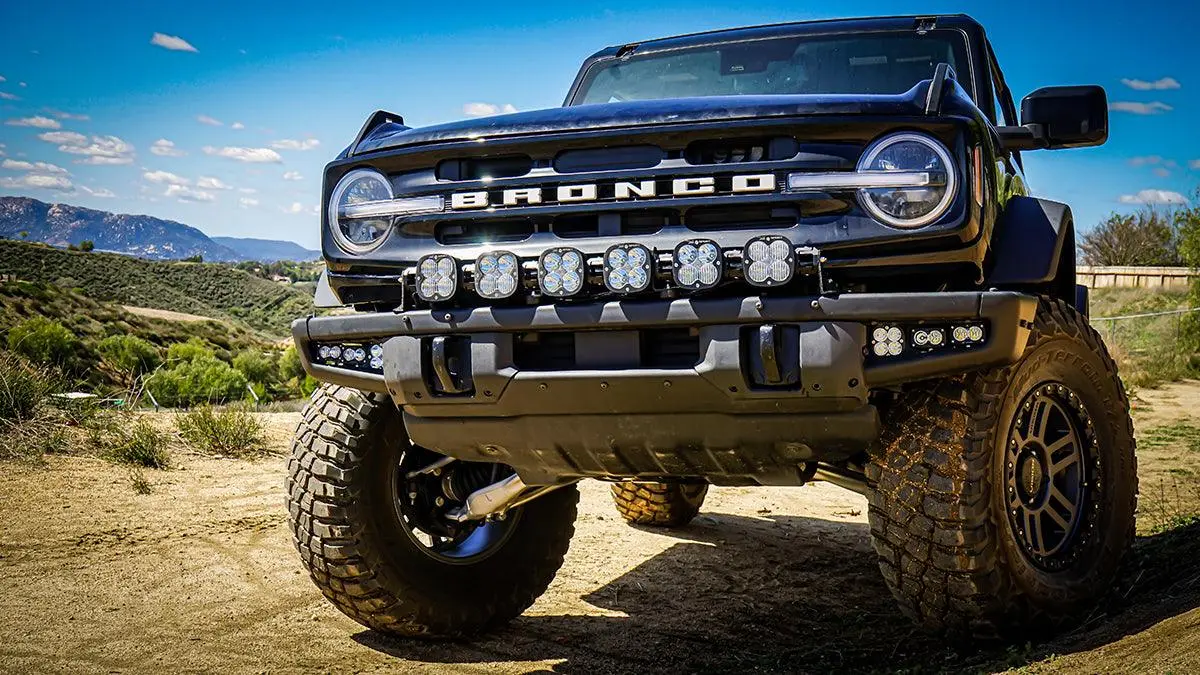

Style, fitment, performance, and ease of installation. This kit is designed for the Ford Bronco enthusiast that is looking to light up the trail with ample light, and differentiate yourself from the pack. This kit specifically utilizes a set of S2 Sports in Driving/Combo, a set of S2 Sports in Spot, and a set of Squadron Amber SAE in wide cornering. The brackets used to mount this performance oriented light setup ensure no cutting or drilling, and the wiring that is included will allow for the lights to be operated from toggle switches in the cab. This is a comprehensive kit and does not require any additional parts for installation.
|
Specifications (Per SAE):
Lumens: 2,480 Utilizing 4 LEDs
Wattage/Amps: 22W / 1.6A
Dimensions: 3.07″ x 2.77″ x 3.07″
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)
|
Specifications (Per S2 Sport):
Lumens: 1,130 Utilizing 2 LEDs
Wattage/Amps: 12W / .9A
Dimensions: 2.93″ x 1.76″ x 1.68″
Weight: 8 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
|
|
Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
|
Application:

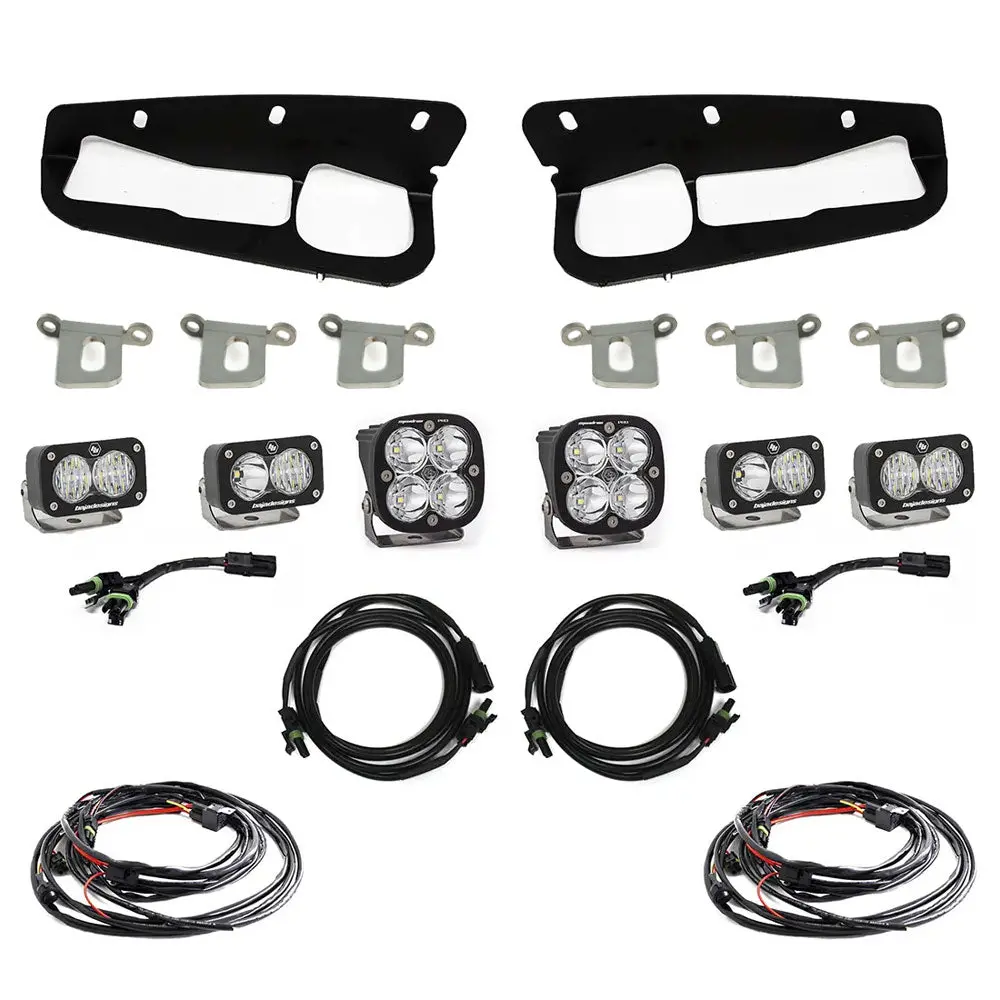

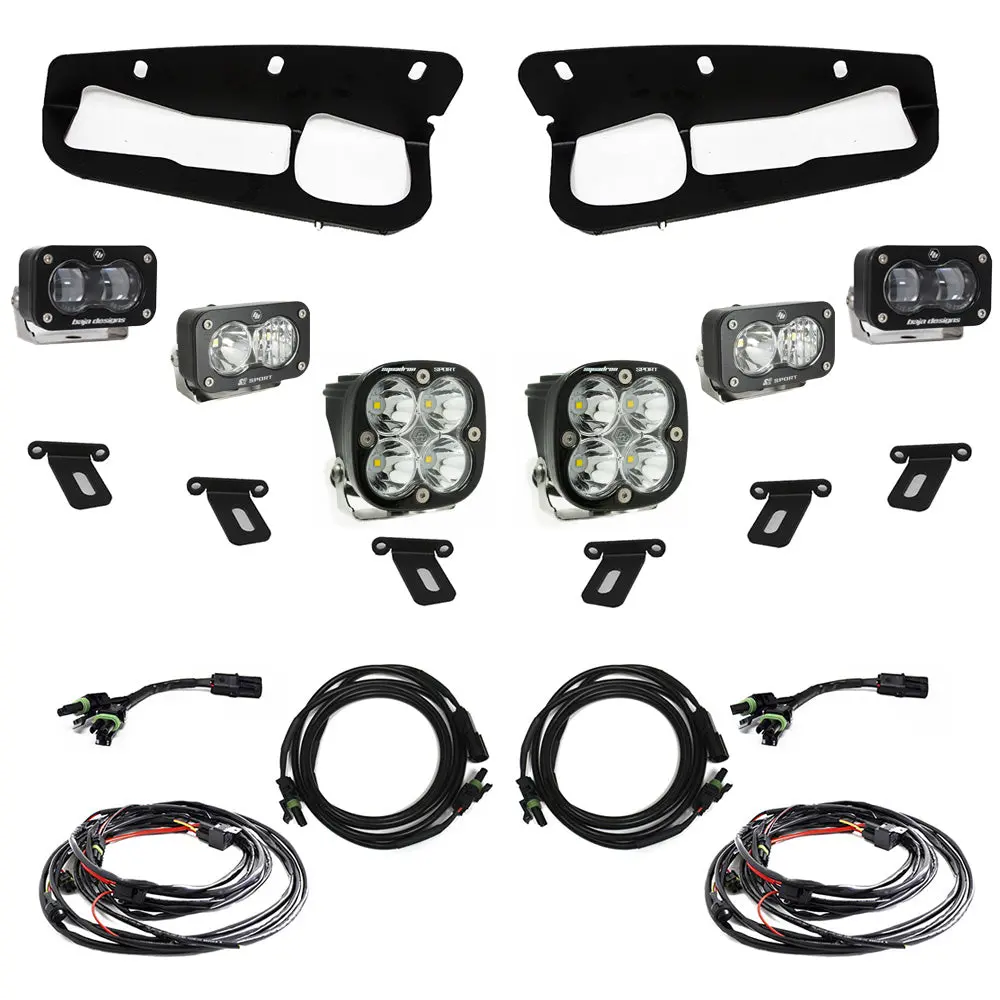

Included:
- S2 Sport, Driving/Combo Pair
- S2 Sport, Spot Pair
- Squadron SAE, Amber Wide Cornering Pair
- x2 Bracket Fascia Pieces
- x6 Light Mounts
- x2 Toggle Switch Harnesses
- x2 55″ Splitters
- x2 small Splitters
